Series: AA1100, 3003, 3004, 3105, 5006, 5052, 8011, etc.
Thickness: 0.016-1.5mm
Width: ＜1600mm
Warrantly ： Regular PE: 3-5 years ；
High Performance PE: 6-9 years；
PVDF: 15 years ；
FEVE: Two coats: between 10-15 years ；
FEVE: Three coats: 15-20 years
Application: aluminum composite panel, aluminum honeycomb, fireproof veneer, aluminum ceiling, shutters, roller shutter door, etc.
Product Description

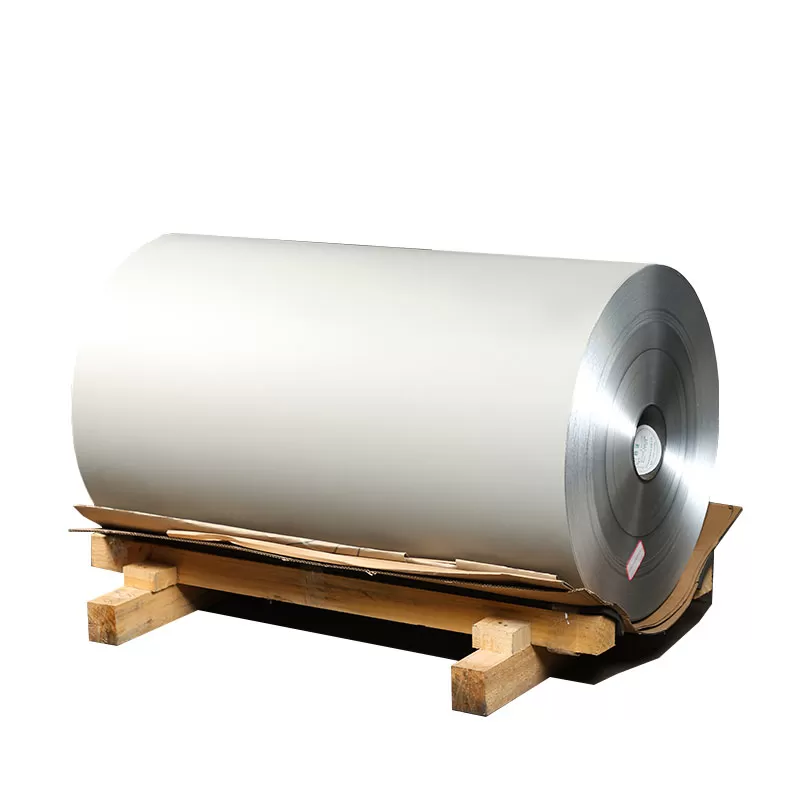

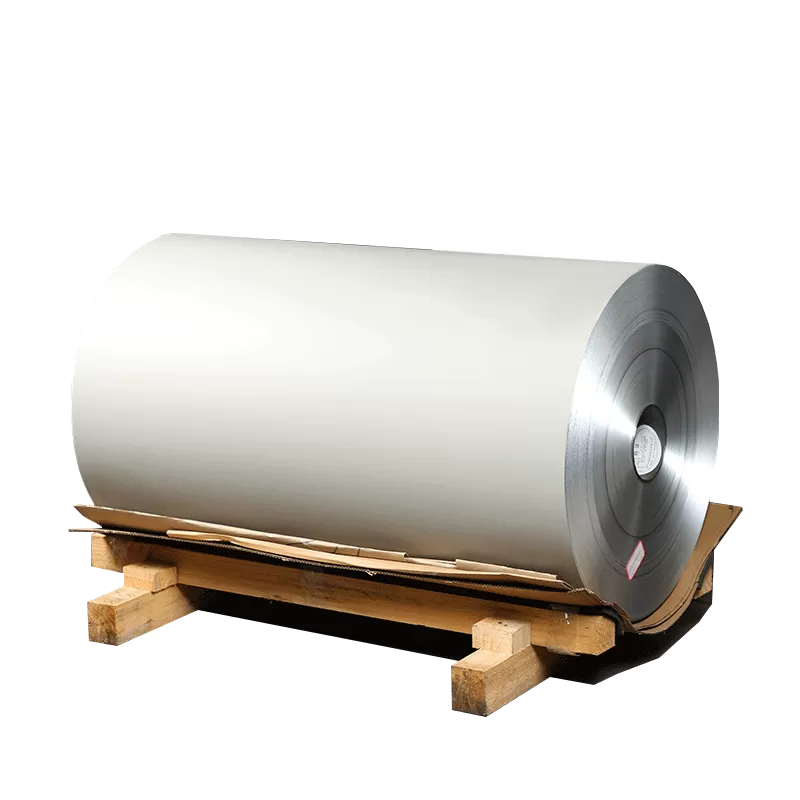

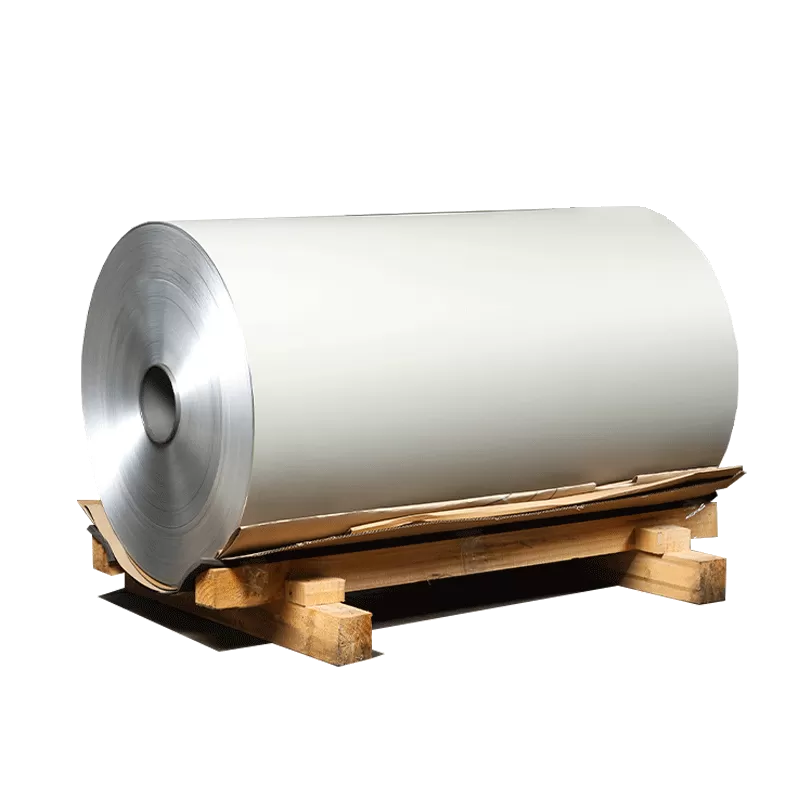

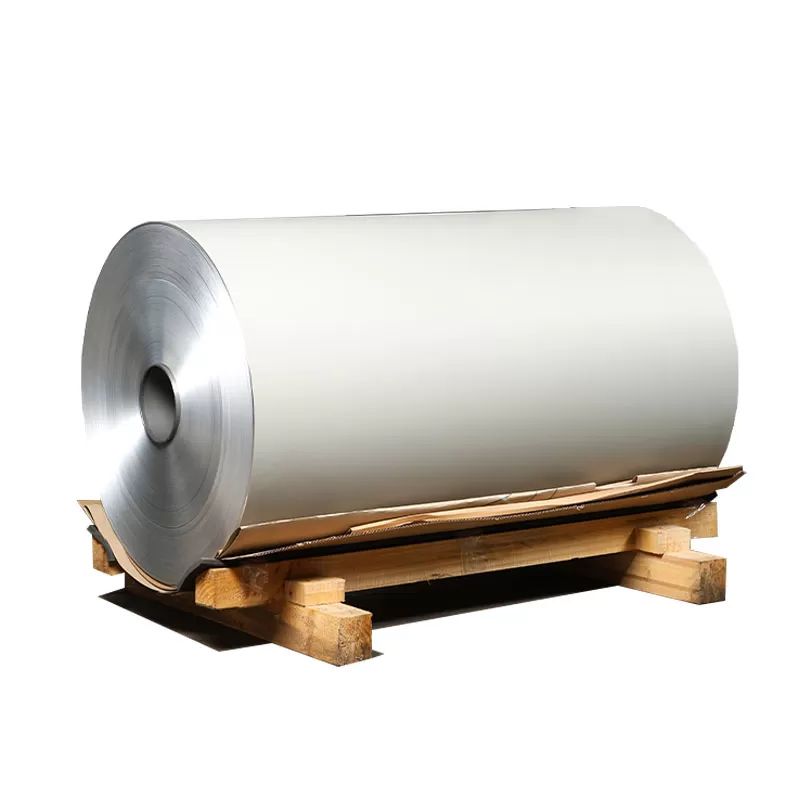

Primer color coated aluminum coil is a type of aluminum coil that has been coated with a layer of primer, which is a preliminary coating that prepares the surface for the final coating. This type of coating is typically used in building materials and construction applications, such as roofing, wall cladding, and gutters. Primer color coated aluminum coil provides excellent corrosion resistance, durability, and aesthetics, making it ideal for both functional and decorative purposes. Its benefits include easy installation, low maintenance, and a wide range of color options. Overall, primer color coated aluminum coils are a reliable and cost-effective solution for many different applications.Our factory also produce PVDF color coated aluminum coil.
| POLYESTER | PVDF | ||
| Item | Technical requirements | Item | Technical requirements |
| Thickness of coating film | ≥ 18 µm | Thickness of coating film | ≥ 25µm |
| Gloss deviation | gloss<70, tolerance≤10% | Gloss deviation | gloss<70, tolerance≤10% |
| gloss≥70, tolerance≤5% | gloss≥70, tolerance≤5% | ||
| Hardness of pencil | ≥3H | Hardness of pencil | ≥3H |
| Adhesion | no lower than class 1 | Adhesion | no lower than class 1 |
| Flexibility | ≤2T | Flexibility | ≤2T |
| Boiling water resistance | no change (2h) | Boiling water resistance | no change (2h) |
| Color difference | ΔE≤2.0 | Color difference | ΔE≤2.0 |
| MEK | ≥100 times | MEK | ≥150 times |
Primer color coated aluminum coil is a high-quality coated aluminum coil that can be used for a variety of purposes. Because of its excellent properties such as corrosion resistance, oxidation resistance, good heat insulation and toughness, it is widely used in many fields.

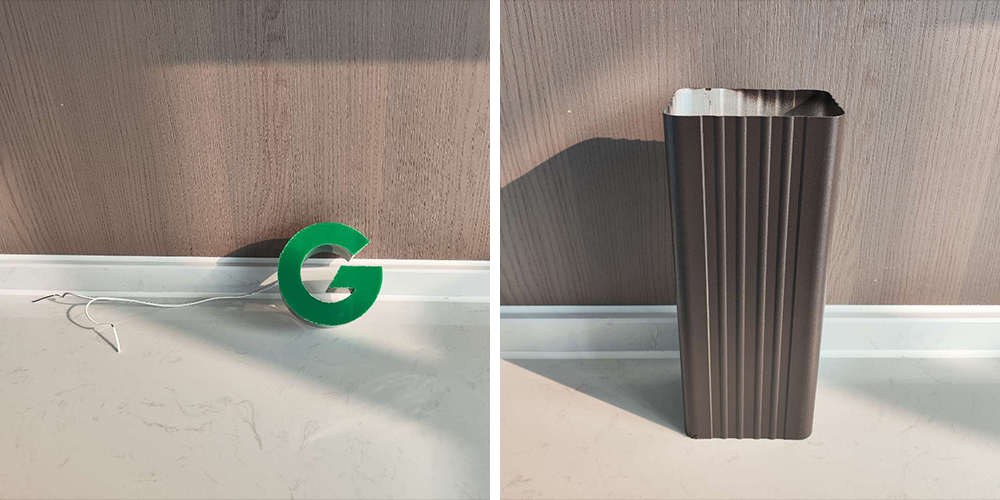

Primer color coated aluminum coil is often used for exterior cladding, roofs, and gutters because it is weather-resistant, durable, and easy to install. It can also be painted in a variety of colors to match the overall design of a building.
Aluminum coils are also used in the automotive industry to make lightweight, yet sturdy, parts for cars and trucks. This reduces fuel consumption and helps to improve the overall performance of vehicles.
Because aluminum is an excellent conductor of electricity, primer color coated aluminum coil is often used for electrical wiring, switches, and transformers. It is also heat-resistant, which makes it ideal for use in appliances and electronics.
ACP factory usually purchase Primer color coated aluminum coil.
Overall, primer color coated aluminum coil is a reliable, durable, and versatile material that can be used in a vast range of applications. Its many benefits make it a popular choice for builders, manufacturers, and consumers alike.
