Series: AA1100, 3003, 3004, 3105, 5006, 5052, 8011, etc.
Thickness: 0.016-1.5mm
Width: ＜1600mm
Warrantly ： Regular PE: 3-5 years ；
High Performance PE: 6-9 years；
PVDF: 15 years ；
FEVE: Two coats: between 10-15 years ；
FEVE: Three coats: 15-20 years
Application: aluminum composite panel, aluminum honeycomb, fireproof veneer, aluminum ceiling, shutters, roller shutter door, etc.
Product Description

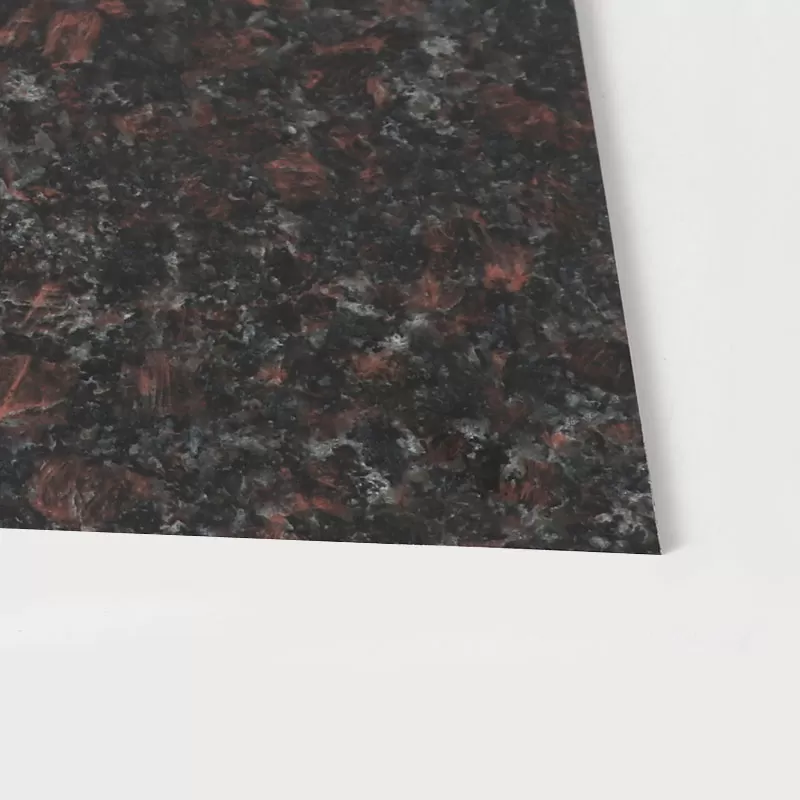

What Is Marble Color Aluminum Coil？
Marble Color Aluminum Coi provides an attractive and durable solution for various architectural applications. Featuring a unique texture that mimics the look of natural stone, this coil comes in a range of beautiful colors that can enhance the aesthetic appeal of any building. Thanks to its exceptional resistance to weather, corrosion, and fading, Marble Color Aluminum Coiis a smart choose that will stand the test of time.Our factory aslo produce FEVE color coated aluminum coil.
The Specification of Marble Color Aluminum Coil
| Item | Test Item | Standard | National standard | Test Result |
| 1 | Color Difference | GB/T-17748-2016 | ΔE≤2.0 | ΔE≤1.0 |
| 2 | Gloss Difference | GB/T-17748-2016 | ≤10 | ≤5 |
| 3 | Coating Thickness | GB/T-17748-2016 | Two layers Min 23μm | ≥25μm |
| Three layers Min 30μm | ≥34μm | |||
| 4 | Pencil Hardness | GB/T-17748-2016 | ≥HB | HB |
| 5 | T-bend | GB/T-17748-2016 | ≤2T | ≤2T |
| 6 | Adhesion | GB/T-17748-2016 | Grade 0 | Grade 0 |
| 7 | Impact | GB/T-17748-2016 | ≥50kg.cm | ≥50kg.cm |
| 8 | Boiling water Resistance | GB/T-17748-2016 | 2h No change | 4h No change |
| 9 | Solvent Resistance | GB/T-17748-2016 | 200 times paints remaining | 500 times no break |
| 10 | Acidity Resistance | GB/T-17748-2016 | 5%HCL 24hrs No change | No change |
| 11 | Alkali Resistance | GB/T-17748-2016 | 5%NaOH 24hrs No change color △E≤2.0 | No change |
| 12 | Nitric acid Resistance | GB/T-17748-2016 | △E≤5.0 | △E≤5.0 |
| 13 | Oil Resistance | GB/T-17748-2016 | 20#oil 24hrs No change | No change |
| 14 | Salt Spray Resistance | GB/T-17748-2016 | 4000hrs ≤Grade 1 | No change |
| 15 | Abrasion resistance | GB/T-17748-2016 | ≥5L/μm | ≥5L/μm |
| 16 | Dirt Resistance | GB/T-17748-2016 | ≤5% | ＜5% |
| 17 | Color retaining | GB/T-17748-2016 | 4000 hrs△E≤4.0 | 4000 hrs △E≤3.0 |
| 18 | Gloss weaken Level | 4000 hrs ≤ Grade 2 | 4000 hrs ≤ Grade 2 | |
| 19 | Chalking | 4000 hrsNo change | 4000 hrs No change |
The advantage of Marble Color Aluminum Coil
Marble Color Aluminum Coil has several advantages. Firstly, it is highly durable, weather-resistant, and corrosion-resistant.
Secondly, the marble patterned coating creates a natural and elegant look, enhancing the aesthetics of the building. Thirdly, the material is lightweight, making it easy to install and transport.
Lastly, the color coating offers excellent color retention and is fade-resistant, ensuring long-lasting color vibrancy. Overall, Marble Color Aluminum Coilprovides an ideal solution for modern architectural designs.
The Application of Marble Color Aluminum Coil
Color aluminum coil mainly use in aluminum compsoite panel, roof tiles, embossing materials, walls, doors and Windows (shutter doors, blinds, curtain boxes), water drop systems, home appliance panels (refrigerator linings, instrument panels), advertising boards, printing boards, insulation boards, honeycomb panels, aluminum ceilings.
