Home > Products > Specification > Length > 1520mm PVDF Color Coated Aluminum Coil

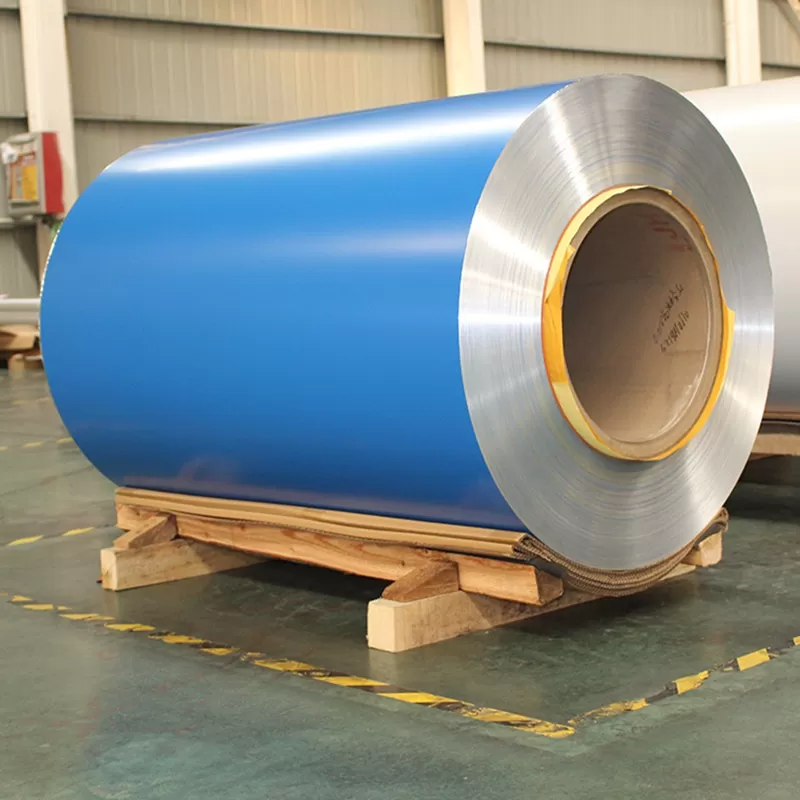

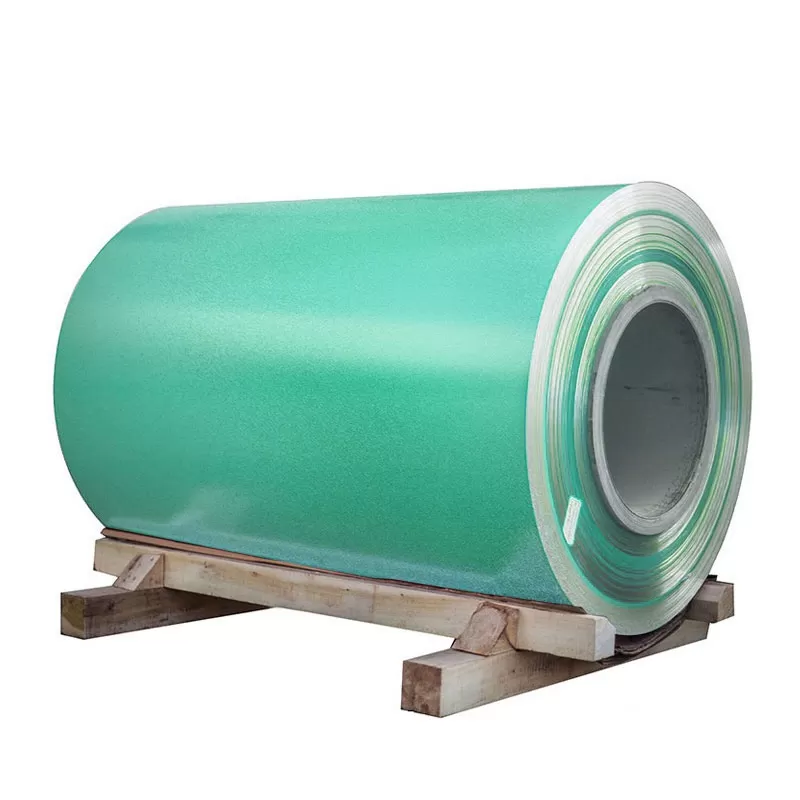

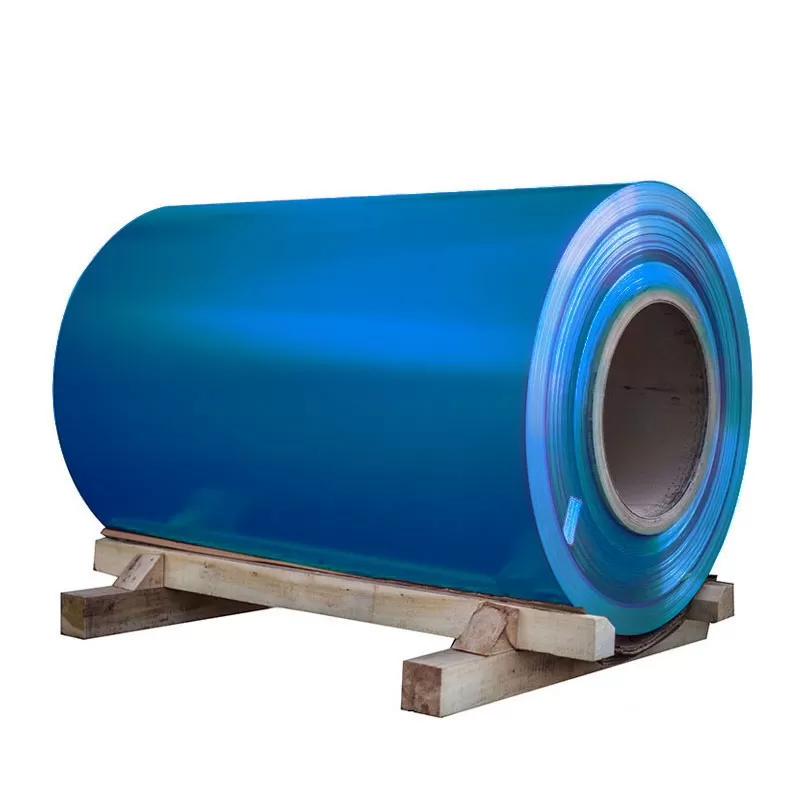

1520mm PVDF Color Coated Aluminum Coil

Series: AA1100, 3003, 3004, 3105, 5006, 5052, 8011, etc.

Thickness: 0.016-1.5mm

Width: 1520mm

Warrantly   :  Regular PE: 3-5 years ;

                         High Performance PE: 6-9 years;

                         PVDF: 15 years ;

                         FEVE: Two coats: between 10-15 years ;

                         FEVE: Three coats: 15-20 years

Application: aluminum composite panel, aluminum honeycomb, fireproof veneer, aluminum ceiling, shutters, roller shutter door, etc.


Product Description

1520mm PVDF Color Coated Aluminum Coil

1520mm PVDF Color Coated Aluminum Coil is an advanced painting system that uses fluorinated polymer resin as the main ingredient. This high-performance coating provides excellent weather resistance and durability against harsh environments. PVDF coated aluminum coil is a popular material for architectural decoration, exterior cladding, and signage applications due to its vibrant colors, outstanding gloss, and long-lasting performance.PVDF paint is guaranteed about10-15 years.


Aluminum AlloyAA1100.3003,3004,3105,etc
Coil thickness0.018-1.5mm
Coil width2000mm,standard 1240mm MAX 2020mm
Coil weight0.5 to 5.0 tons per coil
Surface treatmentPE&PVDF coating/ Embossed, mill finish, coated
colorwhite series,metallic series,dark series,gold series(accept color customs)  RAL/PANTONE or as JINHU  /color chart or customized
PackingStandard exporting packing/ or at buyer's requirement
Trade TermsFOB/CIF etc
Diameter405mm,505mm,508mm


Coating thickness14-28 microns(PE:≥14micron,pvdf:≥25micron)
Coils core diameter150mm,405mm,505mm
TemperO - H112
Brand NameJINHU
gloss20-100%(matte:≥20,glossy:≥60)
POLYESTER
ItemTechinical requirementsItemTechinical requirements
Thickness of coating film≥18Flexibilty≤2T
Gloss deviationGloss<70.Limit of error≤10%
Gloss≥70.Limit of error≤5%
Boiling water resisitance2H No color change
Hardness pf pencil≥2HColor difference△E≤2.0
Adhesion≥1LeverMEK≥150 Times


Types of PVDF Color Coated Aluminum Coil

PVDF coated aluminum coil is a type of aluminum coil that has been coated with a PVDF (Polyvinylidene fluoride) paint. This highly durable, weather-resistant coating is known for its high-quality finish, excellent adhesion, and resistance to fading, chalking, and cracking.


There are several classifications of PVDF coated aluminum coil including solid, metallic, stone, and wood grain finishes. Solid finishes are the most widely used and are available in a wide range of colors. Metallic finishes give the appearance of real metal and provide a distinctive look to buildings. Stone finishes mimic natural stone, while wood grain finishes imitate the look of real wood.


With its long-lasting durability, PVDF coated aluminum coil is used in a variety of applications, including building facades, roofing systems, and interior decoration. The diversity in its finishes makes it a popular choice for architects and designers seeking to create unique and stunning buildings.


Overall, PVDF coated aluminum coil offers a high-quality and long-lasting finish that adds value and appeal to any project.
