Series: AA1100 1060 3003 3105 3004 and 8011, etc.
Thickness: 0.016-1.5mm
Width: 1270mm
Warrantly ： Regular PE: 3-5 years ；
High Performance PE: 6-9 years；
PVDF: 15 years ；
FEVE: Two coats: between 10-15 years ；
FEVE: Three coats: 15-20 years
Application: aluminum composite panel, aluminum honeycomb, fireproof veneer, aluminum ceiling, shutters, roller shutter door, etc.
Product Description

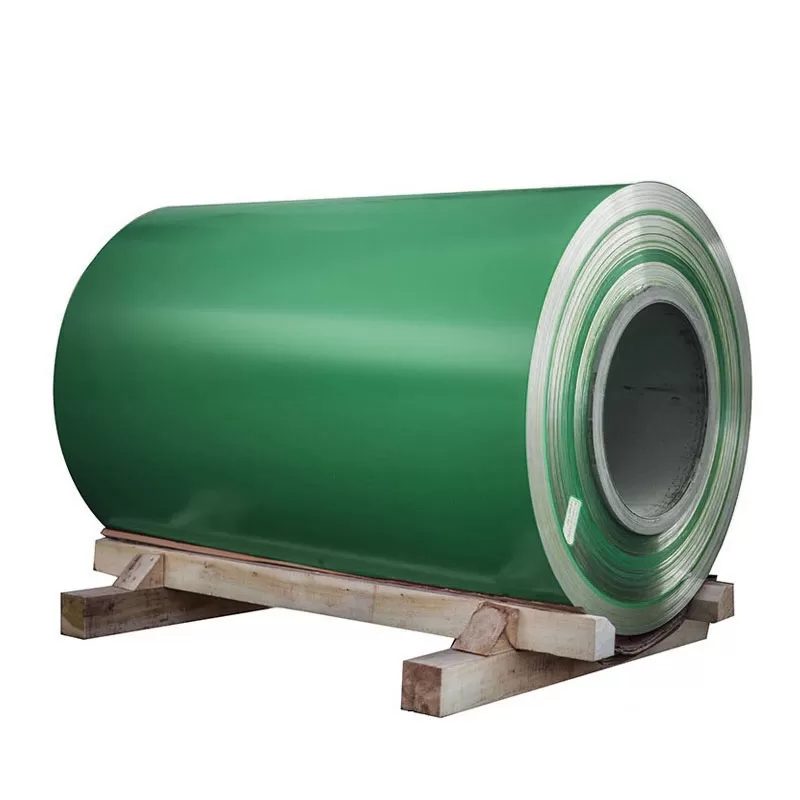

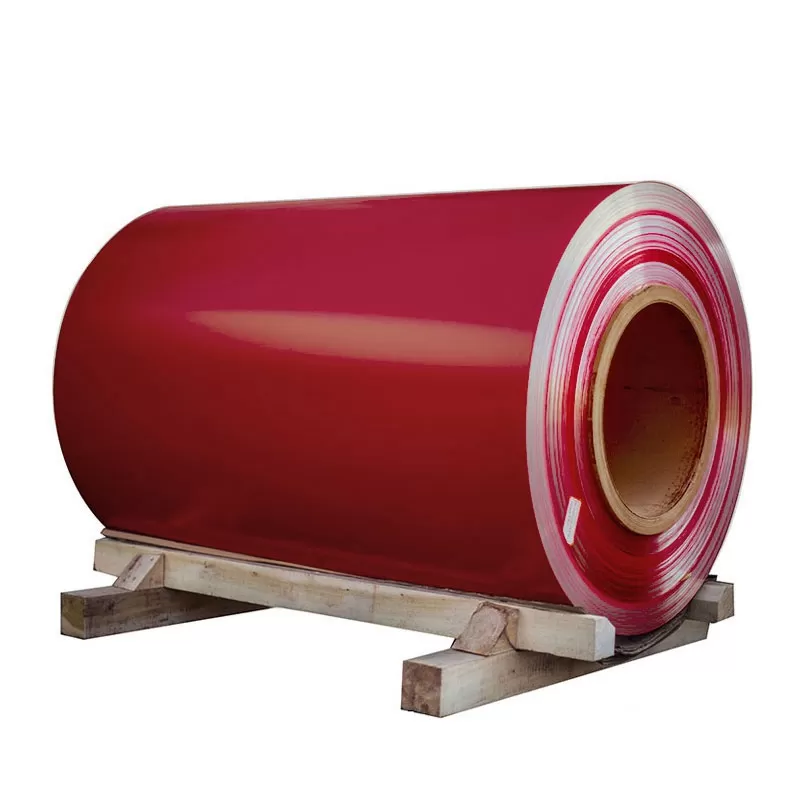

About FEVE Color Coated Aluminum Coil
FEVE color coated aluminum coil, also known as fluorocarbon coating aluminum coil, FEVE color coated aluminum coil have its own advantage. and can maintain color stability for a long time.
Two times FEVE coating about: 10-15years
Three times FEVE coating about: 15-20years. Our factory also produces PE coated aluminum coil.
The Specification of FEVE Color Coated Aluminum Coil
| Item | Test Item | Standard | National standard | Test Result |
| 1 | Color Difference | GB/T-17748-2016 | ΔE≤2.0 | ΔE≤1.0 |
| 2 | Gloss Difference | GB/T-17748-2016 | ≤10 | ≤5 |
| 3 | Coating Thickness | GB/T-17748-2016 | Two layers Min 23μm | ≥25μm |
| Three layers Min 30μm | ≥34μm | |||
| 4 | Pencil Hardness | GB/T-17748-2016 | ≥HB | HB |
| 5 | T-bend | GB/T-17748-2016 | ≤2T | ≤2T |
| 6 | Adhesion | GB/T-17748-2016 | Grade 0 | Grade 0 |
| 7 | Impact | GB/T-17748-2016 | ≥50kg.cm | ≥50kg.cm |
| 8 | Boiling water Resistance | GB/T-17748-2016 | 2h No change | 4h No change |
| 9 | Solvent Resistance | GB/T-17748-2016 | 200 times paints remaining | 500 times no break |
| 10 | Acidity Resistance | GB/T-17748-2016 | 5%HCL 24hrs No change | No change |
| 11 | Alkali Resistance | GB/T-17748-2016 | 5%NaOH 24hrs No change color △E≤2.0 | No change |
| 12 | Nitric acid Resistance | GB/T-17748-2016 | △E≤5.0 | △E≤5.0 |
| 13 | Oil Resistance | GB/T-17748-2016 | 20#oil 24hrs No change | No change |
| 14 | Salt Spray Resistance | GB/T-17748-2016 | 4000hrs ≤Grade 1 | No change |
| 15 | Abrasion resistance | GB/T-17748-2016 | ≥5L/μm | ≥5L/μm |
| 16 | Dirt Resistance | GB/T-17748-2016 | ≤5% | ＜5% |
| 17 | Color retaining | GB/T-17748-2016 | 4000 hrs△E≤4.0 | 4000 hrs △E≤3.0 |
| 18 | Gloss weaken Level | 4000 hrs ≤ Grade 2 | 4000 hrs ≤ Grade 2 | |
| 19 | Chalking | 4000 hrsNo change | 4000 hrs No change |
Advantage of FEVE Color Coated Aluminum Coil
FEVE coated aluminum coil is a premium material that boasts numerous advantages over traditional materials. Here are three clear benefits of using FEVE coated aluminum coil:
1. Exceptional Durability and Weather Resistance: The FEVE coating is a highly durable and weather-resistant material that can withstand even the harshest outdoor environments.
2. Spectacular Aesthetic Appeal: FEVE coated aluminum coil is available in a wide range of vibrant colors and finishes, making it an ideal choice for architectural and decorative applications.
3. Enhanced Sustainability: FEVE coated aluminum coil is an environmentally-friendly option, with a low carbon footprint and the ability to be recycled.

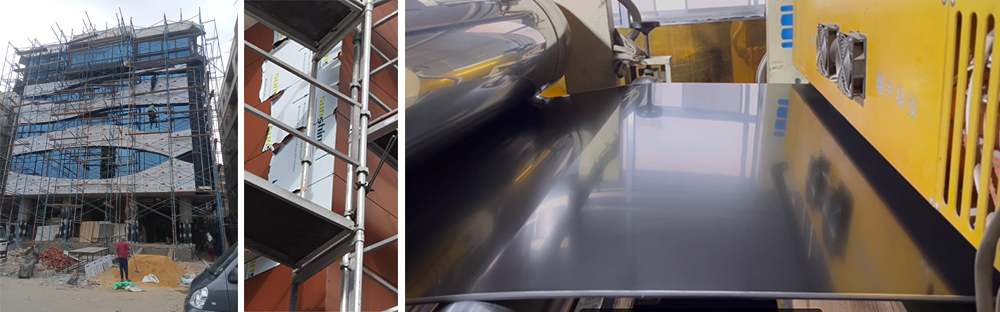

Applications of FEVE Color Coated Aluminum Coil
Good plasticity, machinability and beautiful color make it an ideal material for a variety of construction material:aluminum composite panel, aluminum honeycomb, fireproof veneer, aluminum ceiling, shutters, roller shutter door, building curtain walls, decoration, advertising signs etc.
