Series: AA1100, 3003, 3004, 3105, 5006, 5052, 8011, etc.
Thickness: 0.016-1.5mm
Width: 1240mm
Warrantly ： Regular PE: 3-5 years ；
High Performance PE: 6-9 years；
PVDF: 15 years ；
FEVE: Two coats: between 10-15 years ；
FEVE: Three coats: 15-20 years
Application: aluminum composite panel, aluminum honeycomb, fireproof veneer, aluminum ceiling, shutters, roller shutter door, etc.
Product Description

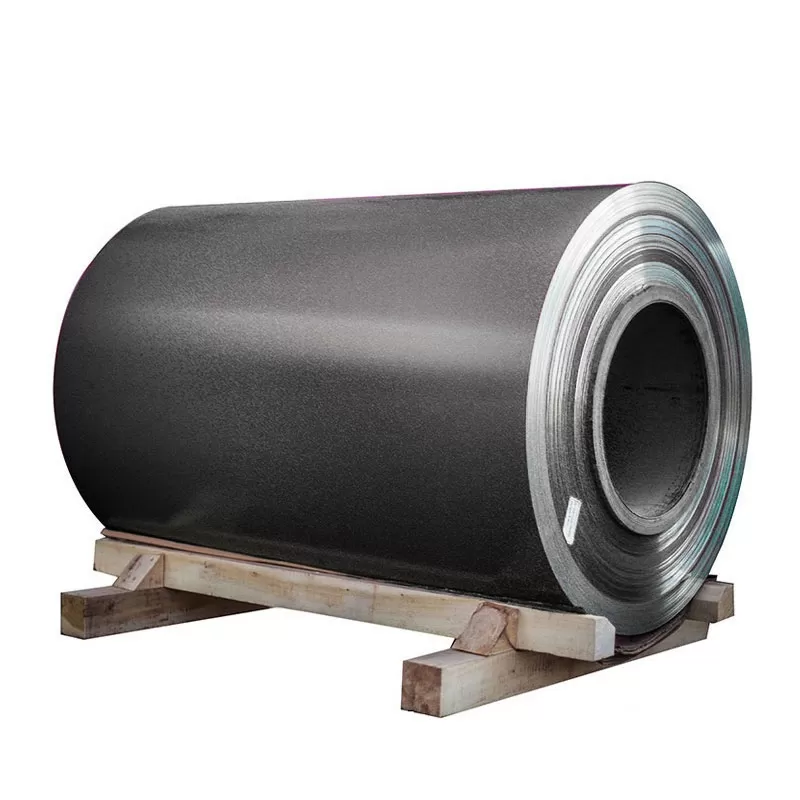

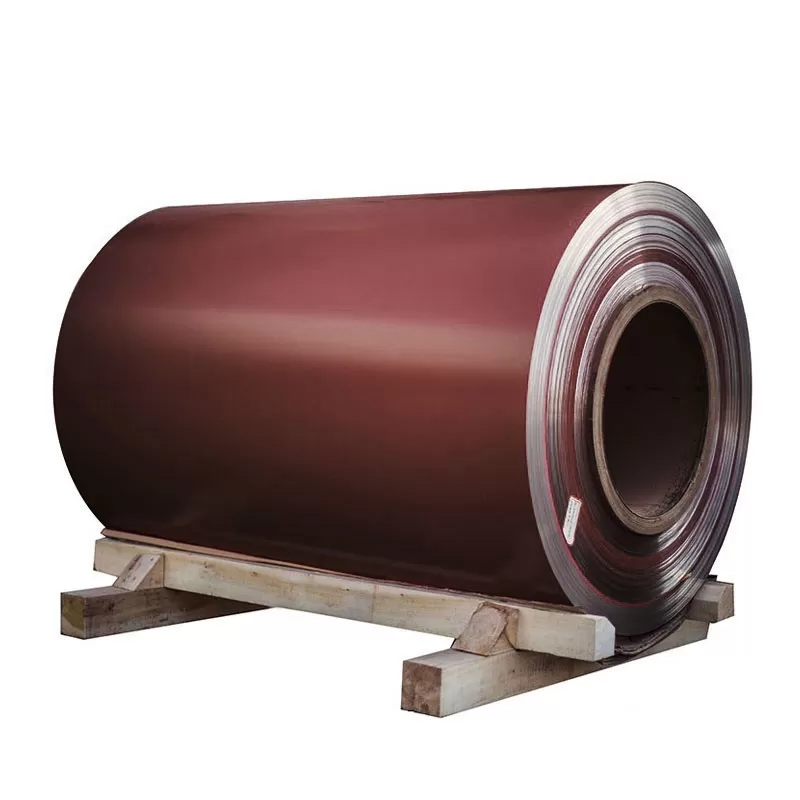

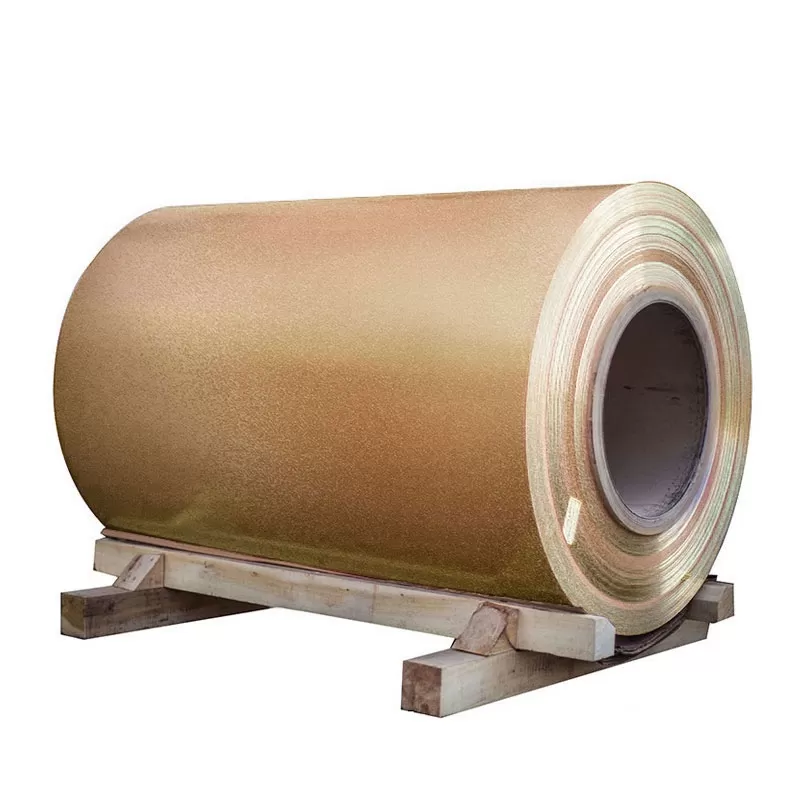

About PE painted aluminum coil
PE painted aluminum coil is of great gloss, smoothness. The PE coating has the property of decorative protection, which protects the building exposed to the atmosphere from the damage of ultraviolet radiation, wind, rain, frost and snow. Conventional PE: 3-5 years High performance PE: 6-9 years. Our factory aslo produces PVDF painted aluminum coil.
| Aluminum Alloy | AA1100.3003, 3004, 3105, etc |
| Coil thickness | 0.018-1.5mm |
| Coil width | 2000mm, standard 1240mm MAX 2020mm |
| Coil weight | 0.5 to 5.0 tons per coil |
| Surface treatment | PE&PVDF coating/ Embossed, mill finish, coated |
| color | white series, metallic series, dark series, gold series(accept color customs) RAL/PANTONE or as JINHU /color chart or customized |

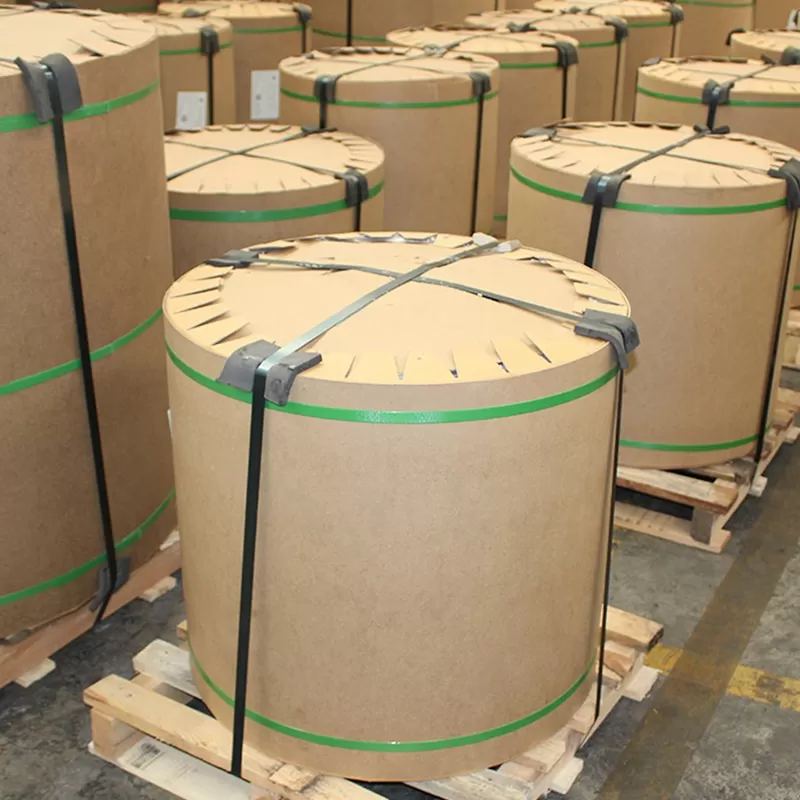

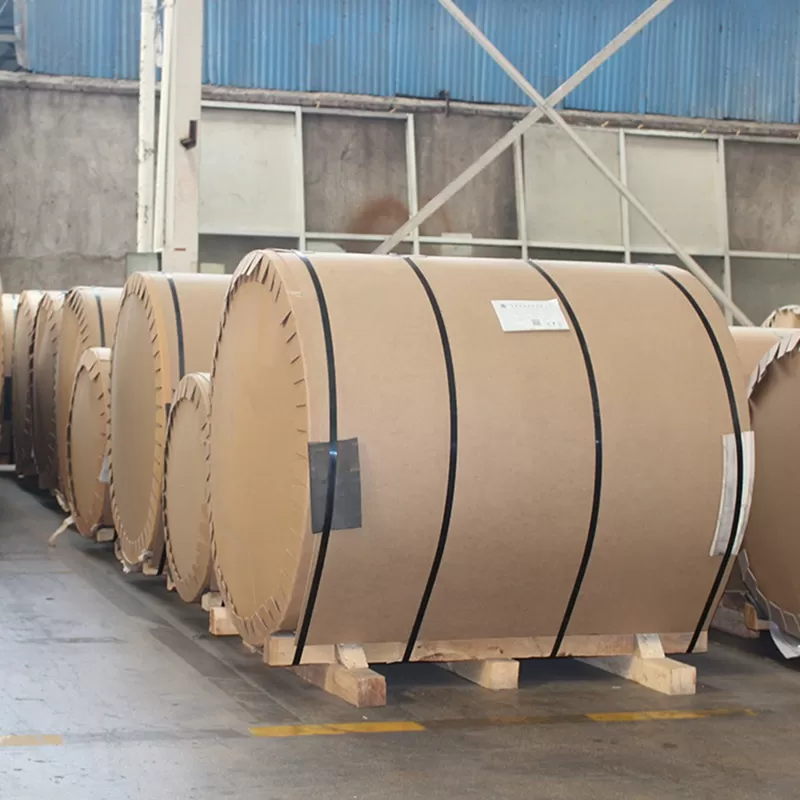

| Packing | Standard exporting packing/ or at buyer's requirement |
| Trade Terms | FOB/CIF etc |
| Diameter | 405mm, 505mm, 508mm |
| Coating thickness | 14-28 microns（PE：≥14micron, pvdf：≥25micron） | |||
| Coils core diameter | 150mm, 405mm, 505mm | |||
| Temper | O - H112 | |||
| Brand Name | JINHU | |||
| gloss | 20-100%(matte:≥20, glossy：≥60） | |||
| POLYESTER | ||||
| Item | Techinical requirements | Item | Techinical requirements | |
| Thickness of coating film | ≥18 | Flexibilty | ≤2T | |
| Gloss deviation | Gloss<70.Limit of error≤10% Gloss≥70.Limit of error≤5% | Boiling water resisitance | 2H No color change | |
| Hardness pf pencil | ≥2H | Color difference | △E≤2.0 | |
| Adhesion | ≥1Lever | MEK | ≥150 Times | |
Advantages of PE painted aluminum coil？
Weather resistance: high gloss retention, good color stability and minimal change in color difference. Common PE paint is guaranteed about 3-5 years; PE paint is guaranteed about 6-9 years.
Environmental protection: it is resistant to salt, alkali, acid rain, rust and it has flame retardancy.
Decoration: We have rich colors and texture for you to choose.
