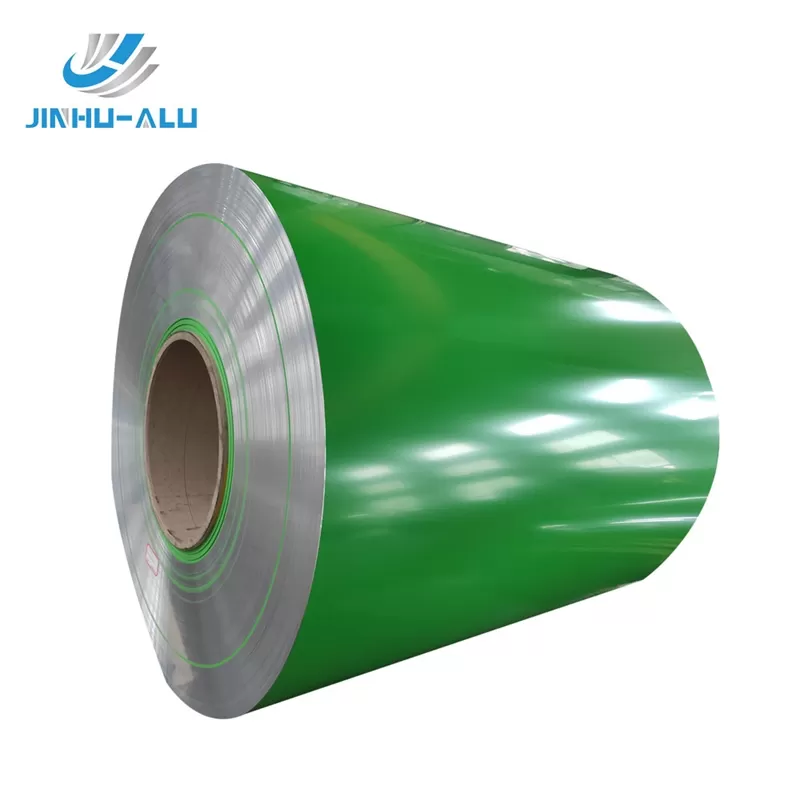

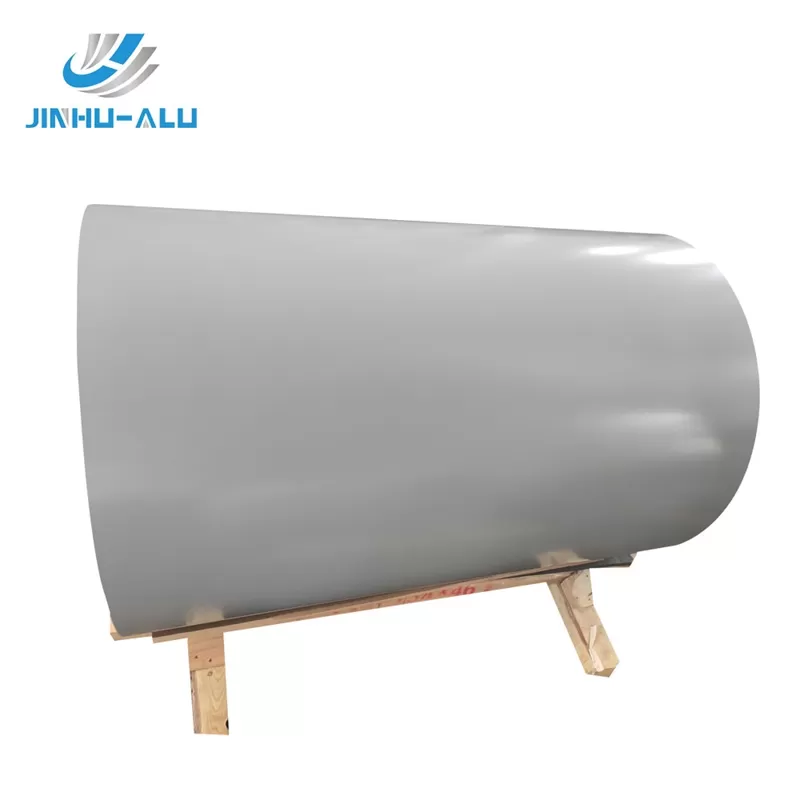

Brush color aluminum coil

Series: AA1100 1060 3003 3105 3004 and 8011, etc.

Thickness: 0.016-1.5mm

Width: <1600mm


Warrantly   :  Regular PE: 3-5 years ;

                         High Performance PE: 6-9 years;

                         PVDF: 15 years ;

                         FEVE: Two coats: between 10-15 years ;

                         FEVE: Three coats: 15-20 years


Product Description

What Is Brush color aluminum coil?

Brush color aluminum coil is a type of aluminum coil that has gone through a process of drawing and coating with colorful paint. This type of aluminum coil is highly versatile and can be used in a wide range of applications, including construction, decoration, and transportation. The laser coating enhances the durability and aesthetic appeal of the aluminum coil, making it an excellent choice for any project. Get your laser coated aluminum coil today and add color and style to your next project. Our factory aslo produce FEVE color aluminum coil.


Specification

ItemTest ItemNational standardTest Result
1Color DifferenceΔE≤2.0ΔE≤1.5
2Gloss Difference≤10≤5
3Coating ThicknessMin 14µm≥16µm
4Pencil Hardness≥HBHB
5T-bend≤3T≤2T
6AdhesionGrade 0Grade 0
7Impact≥20kg.cm≥20kg.cm
8Boiling water Resistance2h no change2h no change
9Solvent Resistance200 times paint
remaining
200 times paint
remaining
10Salt Resistance720 hrs≤grade 1720hrs≤grade 1
11Dirt Resistance≤5%<5%
12Color retaining600hrs △E≤2.0△E≤2.0
13Gloss weaken Level600hrs ≤ grade 2600hrs ≤ grade 2
14Chalking600hrs No ChangeNo Change


Technical Features and Process of Brush Color Aluminum Coil

Brushing Process:

Brush color aluminum coil adopts professional brushing process, through customized brush head and high-precision process equipment, to form a uniform brush mark texture on the surface of aluminum coil. This brushing design not only gives the product a modern and artistic sense, but also effectively conceals small surface defects, enhances the visual texture and overall aesthetics of the product.

Color Selection:

We provide a variety of color options, including classic metal colors, modern glossy colors, and wood grain effects, etc., to meet different design styles and customer needs. The color of brush color aluminum coil is precisely matched and the production process is stable to ensure color stability and durability.

Coating Protection:

The surface coating adopts high-quality polyester or polyvinyl fluoride (PVDF) resin, which has excellent weather resistance and corrosion resistance. This coating can not only effectively resist ultraviolet rays, chemicals and atmospheric pollution, but also protect the surface of brush color aluminum coil from damage and color fading.


Brush Color Aluminum Coil Application

Aluminum Door, Exterior wall aluminum composite panel, high speed signage, Aluminum composite panel, Roofing sheets, aluminum roofing system, Aluminum shutters.
